Included:

• Thompson Duke Press Machine
• TPM Dimple Plate 10x10 @17.5mm17.5mm
• Tray Ejector Board 10x10 @ 17.5mm

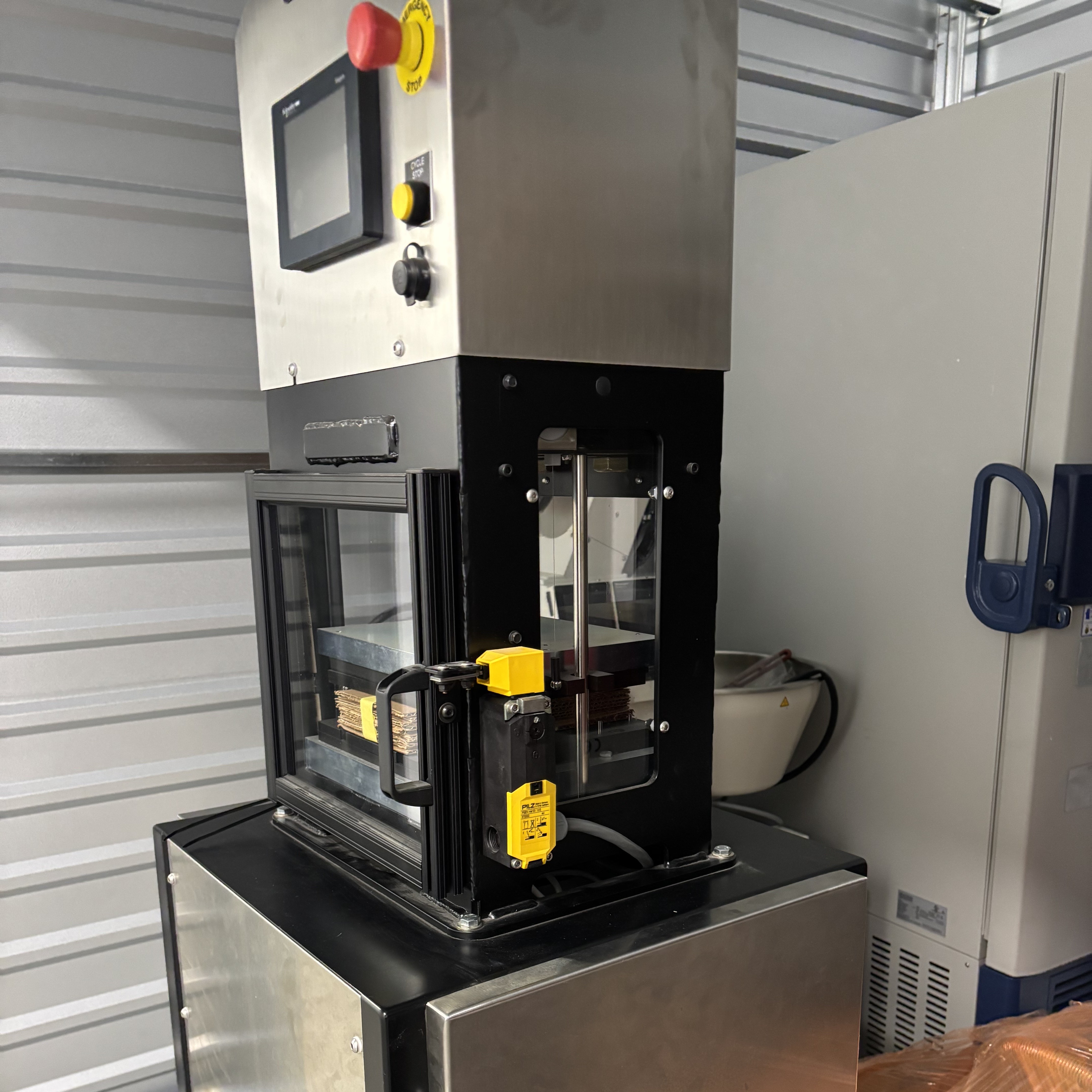

The Thompson Duke Industrial TPM Mouthpiece Press is a 30 ton industrial mouthpiece press
capable of automatically capping up to 252 press-on mouthpieces and caps onto cartridges and
other devices. (Not recommended for devices containing batteries)

Automatically Cap Multiple Press-On Mouthpieces
The TPM Mouthpiece Press is designed to automatically cap multiple, press-on mouthpieces for tamper resistant press style cartridges and devices. Capable of capping up to 252 cartridges at one time, precisely aligning and sealing filled press-on cartridges rapidly, reliably and consistently with automatic force control. Built-in fixture geometry aligns mouthpiece to cartridge for a straight press.

Easy, Safe Operation

Automatic control with the ability to adjust between 1 and 30 tons of force in half-ton increments. Auto-locking safety door interlock and impact-resistant windows protect operators. Machine enclosure rests on casters with leveling feet for easy, safe maneuvering and securing. Very low maintenance system. Food grade hydraulic oil and stainless enclosure ensure easy cleaning and system management. The 120VAC hydraulics require no compressed air system.

Precision Touchscreen Control System
Intuitive and simple touchscreen control allows for easy automatic and manual control of the entire capping process. Control system applies force within operator-
defined setpoint regardless of device height.

Streamlined Performance with Thompson Duke Filling Machines
Place filled Thompson Duke Trays directly from the IZR or ACF1 automatic filling machines into the TPM after setting mouthpieces with the Thompson Duke Mouthpiece Loader. TPM performance accommodates multiple IZR or ACF1 filling machine operations and SOPs.

Made in America
Designed and manufactured in the United States of America. Industrial control
system with GMP compliant materials and components. Stainless steel construction
manufactured specifically for oil filling applications. Exceptional customer support
available for the lifetime of the machine.

Certified

Design adheres to CSA Group Z142-10 Code for Power Press Operation requirements. Hydraulic Power Unit, Integrated Hydraulic Circuit Manifold and Actuator manufactured in conformance with ISO 9001:2015. Press structure frame evaluated and stamped by Registered Professional Structural Engineer using AISC ASD Method. UL508 and CUL Listed Certification for Industrial Control Equipment.

‍
