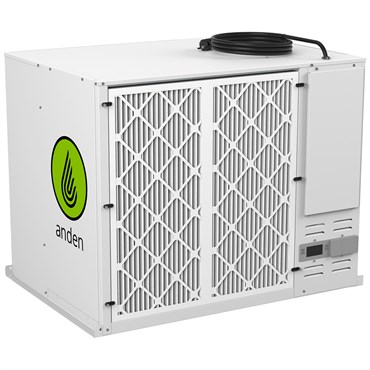

Anden A710V3 Grow-Optimized Dehumidifier #

The Anden A710V3 is a grow-optimized dehumidifier built for the precise humidity control required in commercial indoor cultivation. It uses Anden's VLGR (Variable Load Grow Refrigeration) technology, which modulates the refrigeration system based on the load to help operators maximize VPD and maintain control during late flower conditions.

Performance

• Capacity: 710 PPD at 80°F / 60% RH
• Energy factor: 3.0 L/kWh (6.35 pints/kWh)
• Total cooling load: 16,168 BTU/h at 80°F / 60% RH, 240 VAC
• Airflow: 1,760 CFM at 0.0" w.c.; 1,510 CFM at 0.6" w.c.
• Operating range: 60°F / 40% RH to 85°F / 80% RH

Electrical

• Voltage: 277 VAC, 1-phase, 60 Hz
• Current draw: 17.4 A
• Power: 4,820 W
• Breaker: 30 A
• Wire: 10 AWG copper
• Power cord: SJT, L7-30P, 10 ft (hardwire field-configurable)

Construction and features

• Onboard digital control with diagnostics
• Horizontal air supply orientation
• Filter: 29.5" x 31.5" x 1.75" MERV 11 (Anden Part #5852)
• R410A refrigerant
• Copper-tube, aluminum-fin coil with I-coat corrosion protection
• 3/4" FNPT drain connection (P-trap included)
• Built-in hanging brackets; leveling feet sold separately (Model #5789)
• Optional duct kit (Part #5859)

Included Model A77 wall control

• Dedicated monitoring and control at canopy height
• Control range: 35–80% RH, ±5% RH accuracy, 3% RH differential
• Low limit: 40°F dew point; high limit: 99°F dry bulb
• RS485 communication, 35 VDC supplied by the dehumidifier control board
• 30 ft of 20-gauge 4-wire thermostat wire included

Warranty

5 years on all parts, including the refrigeration system.

Included with the unit

• Model A77 wall control
• 3/4" PVC P-trap, vent T, and PVC connectors
• Drain fittings: 3/4" MNPT x 3/4" barb, 3/4" MNPT x 3/4" female pipe, and 3/4" T-fitting
• 30 ft 20 AWG 4-wire thermostat cable

‍
