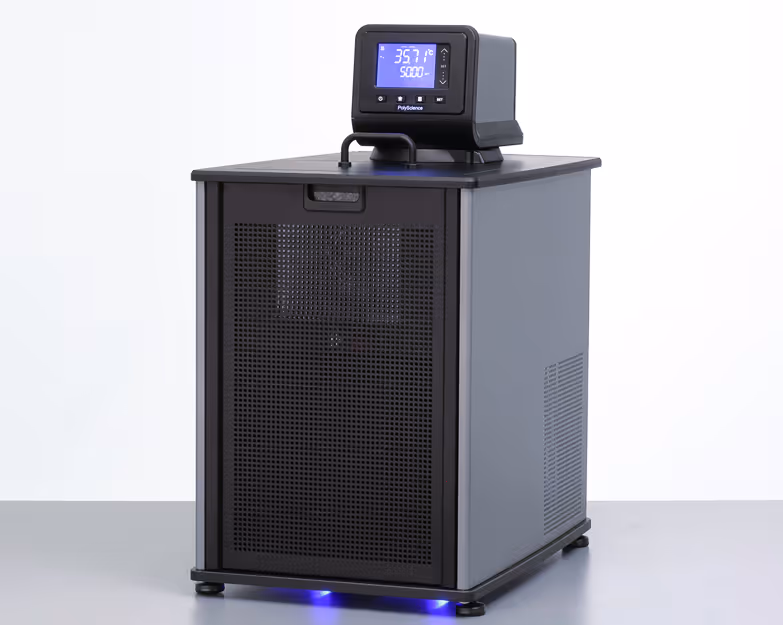

The PolyScience AD15R-40 is a 15-liter refrigerated/heated circulator designed for precise temperature control across a broad range of laboratory and industrial applications. With a temperature range from -40°C to 200°C and a temperature stability of ±0.01°C, it ensures consistent and accurate thermal regulation.

Key Features

• Advanced Digital Controller: Features a 3.75" (9.5 cm) touch-pad LCD display with intuitive controls. Supports four languages: English, French, German, and Spanish.
• Swivel 180™ Rotating Controller: Allows for flexible positioning and easy viewing from different angles.
• Connectivity Options: Equipped with USB-A & B, Ethernet, RS-232/RS-485 ports, and an external temperature probe input for versatile integration.
• Automatic Performance Optimization: Includes specific heat tuning and single-point calibration capability for enhanced accuracy.
• Safety Features: Complies with DIN 12876-1 Class III (FL) flammability requirements, ensuring safe operation.

Specifications

• Temperature Range: -40°C to 200°C (-40°F to 392°F)
• Cooling Capacity at +20°C: 1000 W
• Reservoir Capacity: 15 liters (3.96 gallons)
• Reservoir Material: Stainless Steel
• Working Access (L × W × D): 8.35 × 10.88 × 5.5 inches (21.2 × 27.6 × 14 cm)
• Overall Dimensions (L × W × H): 22.4 × 14.5 × 26.9 inches (56.9 × 36.8 × 68.3 cm)
• Shipping Weight: 118 lbs (53.5 kg)
• Electrical Requirements: 120V, 60Hz, 13A
• Heater Wattage: 1100 W
• Pump Type: Pressure/Suction with variable speed
• Maximum Flow Rate: 20.1 liters per minute (5.3 gallons per minute)
• Refrigerant: R452A
• Environmental Compliance: RoHS, WEEE

‍

‍
